Security - Reverse SSH Tunnel

Reverse SSH tunneling allows customers behind strict firewalls to connect their databases to Integrate.io without exposing any inbound ports. Instead of Integrate.io connecting to your server, you initiate an outbound SSH connection to our public jumphost, which creates a port forward that our pipeline containers connect through.

How It Works

  1. You generate an SSH key pair on your machine
  2. You provide the public key when creating the tunnel in Integrate.io
  3. Integrate.io allocates a port and provides connection details
  4. You run autossh to establish the reverse tunnel from your network to our jumphost
  5. Integrate.io pipelines connect through the tunnel to reach your database

Prerequisites: Generate SSH Key

You need to generate an SSH key pair on the machine that will run autossh. The private key stays on your machine, the public key is pasted into Integrate.io.

Supported key type: ssh-ed25519

ssh-keygen -t ed25519 -f ~/.ssh/integrateio_reverse -N "" -C "integrateio-reverse-tunnel"
cat ~/.ssh/integrateio_reverse.pub

Copy the output of cat (starts with ssh-ed25519) and paste it into the Your SSH Public Key field in the next step.

Setting Up a Reverse SSH Tunnel

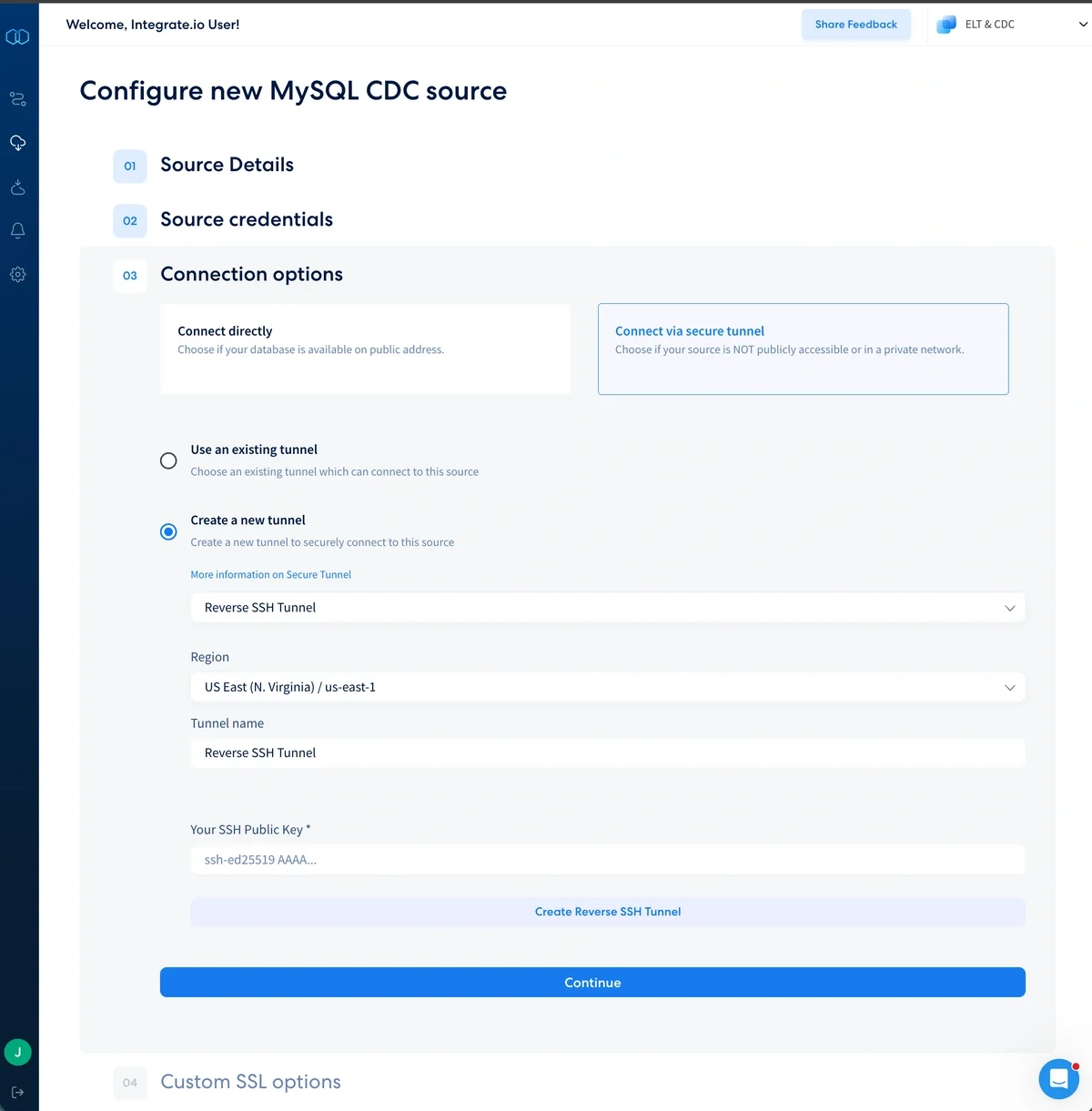

Step 1: Create a new Reverse SSH Tunnel

On the Connection options section of Source or Destination creation:

  1. Select Connect via secure tunnel
  2. Choose Create a new tunnel
  3. Select Reverse SSH Tunnel from the tunnel type dropdown
  4. Choose your Region (e.g. US East / us-east-1)
  5. Enter a Tunnel name
  6. Paste your SSH public key (generated in the prerequisites above)
  7. Click Create Reverse SSH Tunnel

Step 2: Copy the Tunnel Endpoint

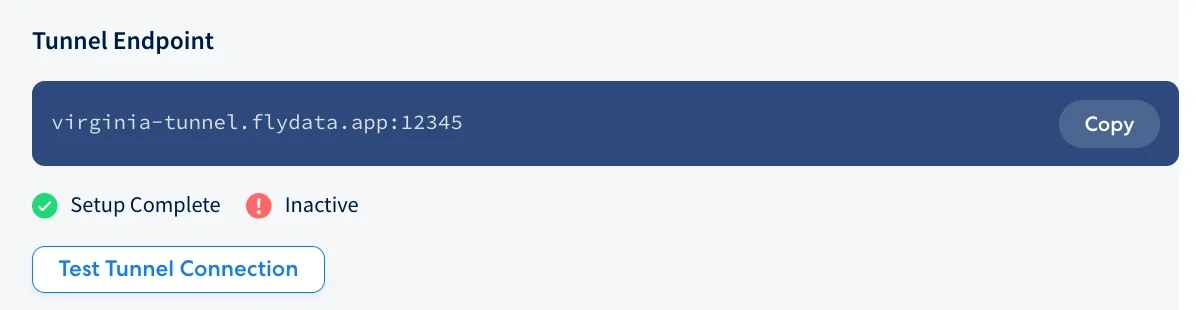

After creation, you will see the Tunnel Endpoint (e.g. virginia-tunnel.flydata.app:12345). The status will show Setup Complete and Inactive until you establish the tunnel from your side.

Step 3: Establish the Tunnel

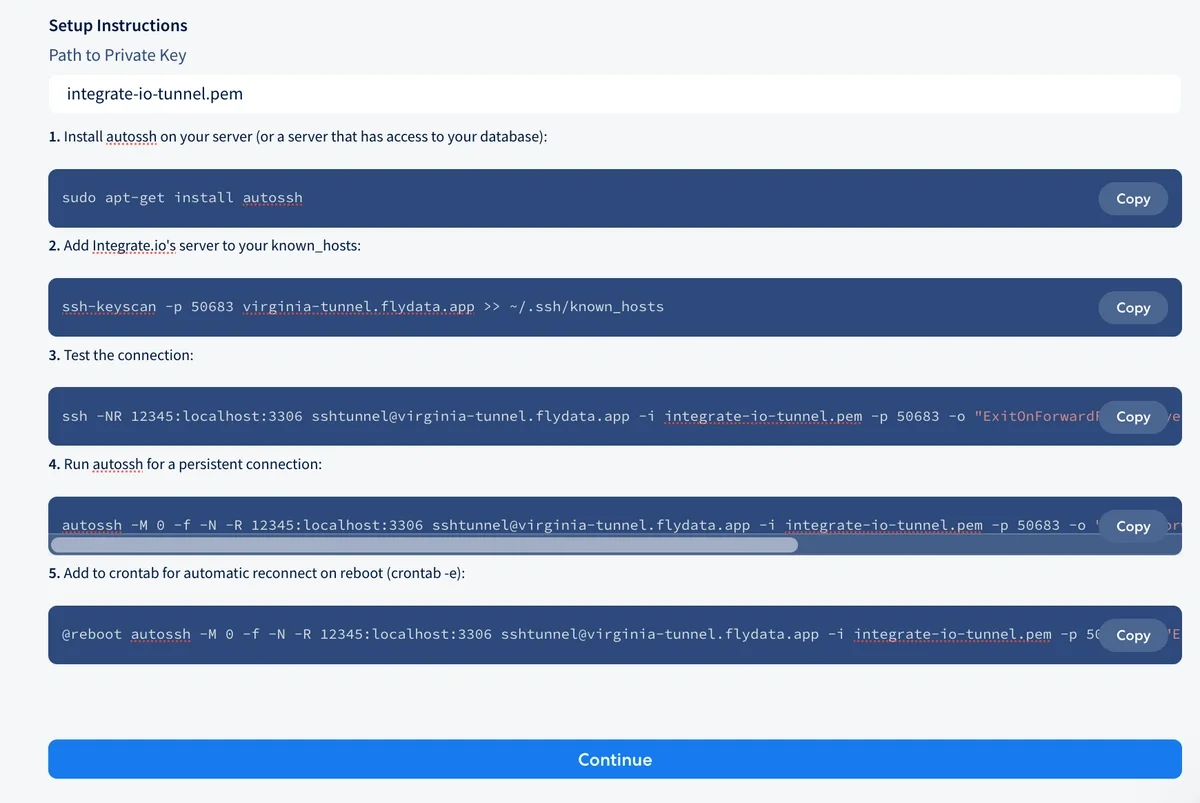

The UI provides step-by-step setup instructions with pre-filled commands. All commands include your tunnel's endpoint, port, and hostname — click Copy to copy each one.

3a. Install autossh on your server (or a server that has access to your database):

# Ubuntu/Debian
sudo apt-get install autossh

# CentOS/RHEL
sudo yum install autossh

# macOS
brew install autossh

3b. Add Integrate.io's server to your known_hosts:

ssh-keyscan -p 50683 <jumphost> >> ~/.ssh/known_hosts

Example:

ssh-keyscan -p 50683 virginia-tunnel.flydata.app >> ~/.ssh/known_hosts

3c. Test the connection:

ssh -NR <allocated_port>:<your-db-host>:<your-db-port> sshtunnel@<jumphost> -i <path-to-private-key> -p 50683 -o "ExitOnForwardFailure yes" -o ServerAliveInterval=10 -o ServerAliveCountMax=1 -v

Example (MySQL on localhost:3306, tunnel port 58115):

ssh -NR 58115:localhost:3306 sshtunnel@virginia-tunnel.flydata.app -i ~/.ssh/integrateio_reverse -p 50683 -o "ExitOnForwardFailure yes" -o ServerAliveInterval=10 -o ServerAliveCountMax=1 -v

You should see remote forward success. Press Ctrl+C to stop the test.

3d. Run autossh for a persistent connection:

AUTOSSH_GATETIME=0 autossh -M 0 -f -N -R <allocated_port>:<your-db-host>:<your-db-port> sshtunnel@<jumphost> -i <path-to-private-key> -p 50683 -o "ExitOnForwardFailure yes" -o ServerAliveInterval=10 -o ServerAliveCountMax=1

Example:

AUTOSSH_GATETIME=0 autossh -M 0 -f -N -R 58115:localhost:3306 sshtunnel@virginia-tunnel.flydata.app -i ~/.ssh/integrateio_reverse -p 50683 -o "ExitOnForwardFailure yes" -o ServerAliveInterval=10 -o ServerAliveCountMax=1

AUTOSSH_GATETIME=0 prevents autossh from exiting if the first connection attempt takes longer than 30 seconds.

3e. Add to crontab for automatic reconnect on reboot:

Run crontab -e and add:

@reboot AUTOSSH_GATETIME=0 autossh -M 0 -f -N -R <allocated_port>:<your-db-host>:<your-db-port> sshtunnel@<jumphost> -i <path-to-private-key> -p 50683 -o "ExitOnForwardFailure yes" -o ServerAliveInterval=10 -o ServerAliveCountMax=1

Step 4: Test the Tunnel Connection

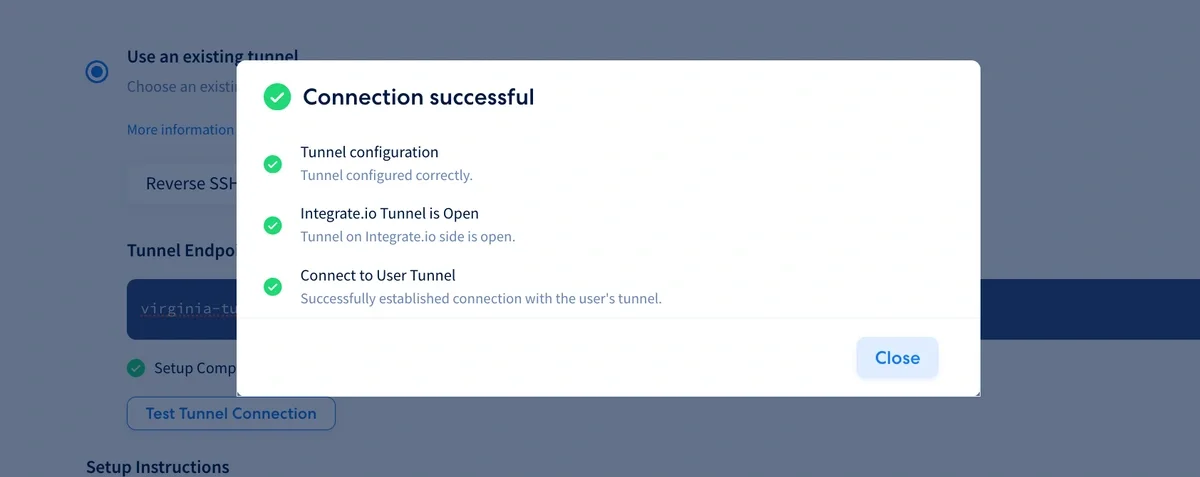

Once your autossh is running, click Test Tunnel Connection in the Integrate.io UI. A successful test shows three green checks:

  • Tunnel configuration — Tunnel configured correctly
  • **Integrate.io Tunnel is Open** — Tunnel on Integrate.io side is open
  • Connect to User Tunnel — Successfully established connection with the user's tunnel

Alternative: Run as a systemd service

For production environments, a systemd service is more robust than crontab:

Create /etc/systemd/system/integrateio-reverse-tunnel.service:

[Unit]
Description=Integrate.io Reverse SSH Tunnel
After=network-online.target
Wants=network-online.target

[Service]
Type=simple
User=<your_user>
ExecStart=/usr/bin/autossh -M 0 -N -R <allocated_port>:<your-db-host>:<your-db-port> sshtunnel@<jumphost> -i /home/<your_user>/.ssh/integrateio_reverse -p 50683 -o "ExitOnForwardFailure yes" -o ServerAliveInterval=10 -o ServerAliveCountMax=1
Environment="AUTOSSH_GATETIME=0"
Restart=always
RestartSec=5

[Install]
WantedBy=multi-user.target

Enable and start:

sudo systemctl daemon-reload
sudo systemctl enable integrateio-reverse-tunnel
sudo systemctl start integrateio-reverse-tunnel
sudo systemctl status integrateio-reverse-tunnel
