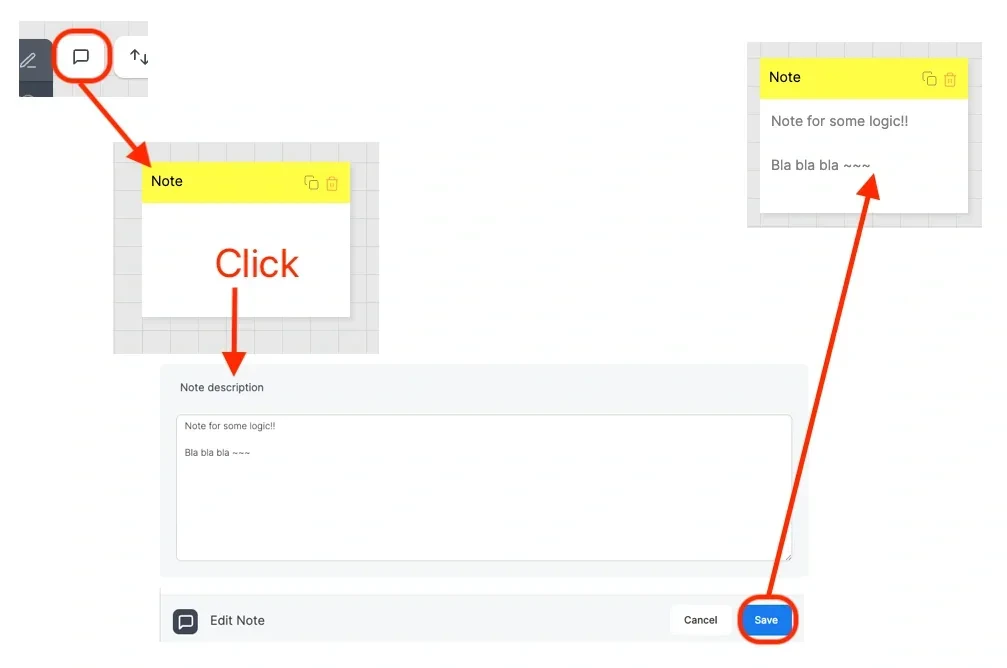

To add a note
After you have added at least one source\ task component, you can perform the following actions on the package and components:
-

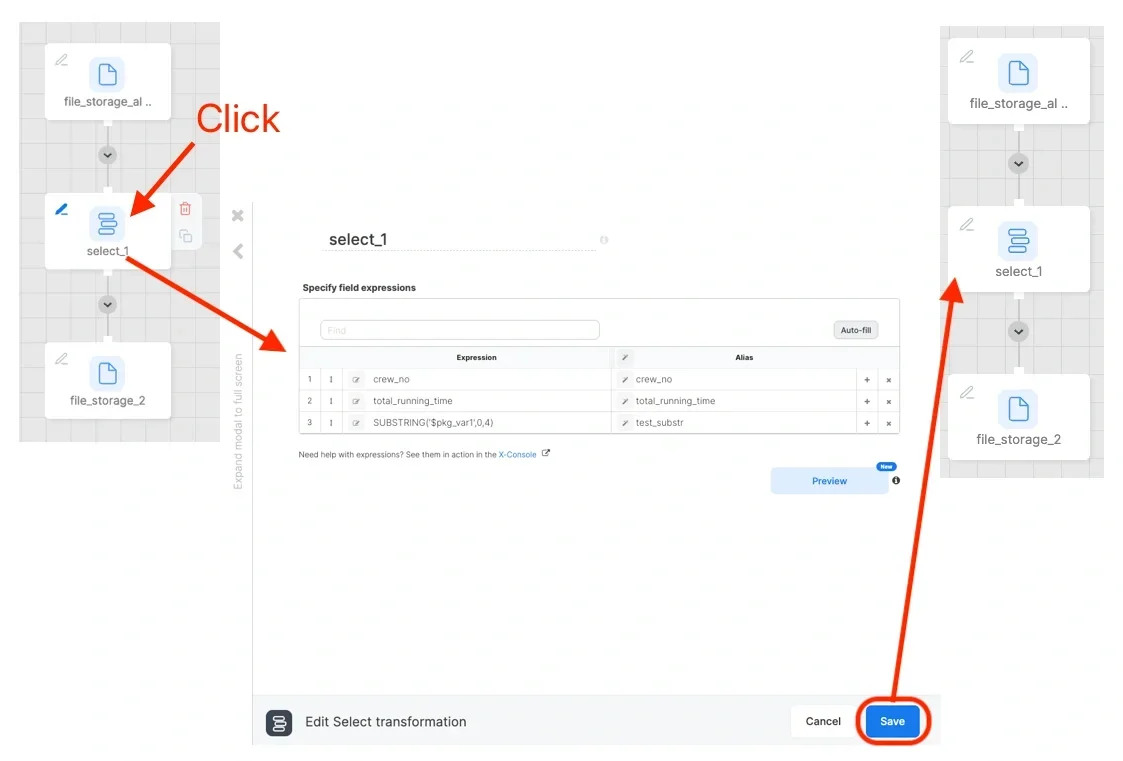

To open a component for editing - click the component.
-

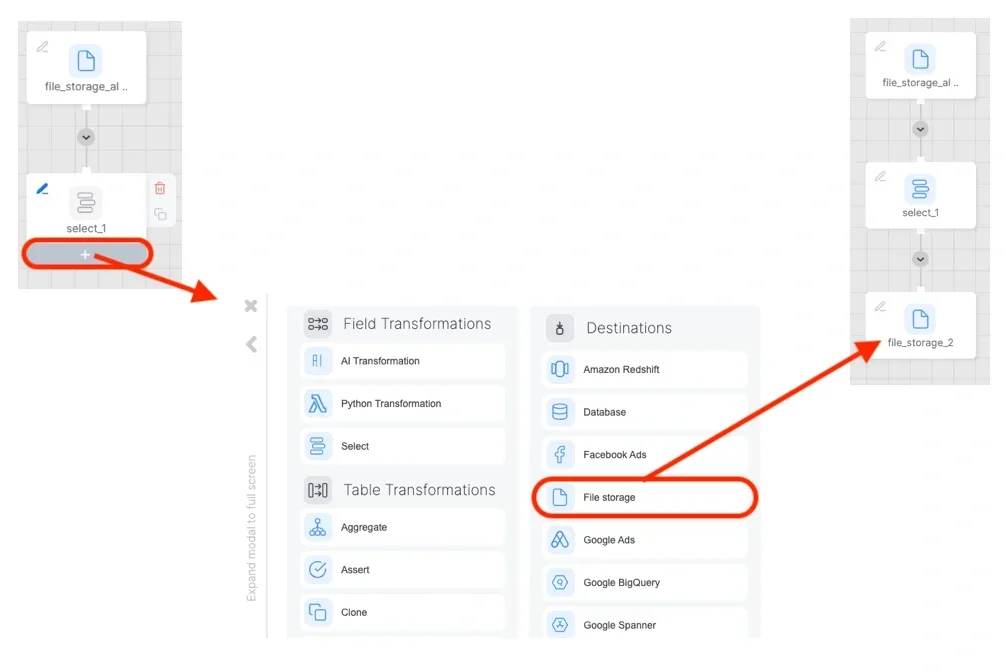

To add a component to a package - click the blue connector under an existing component, or click **+ Add Component.
-

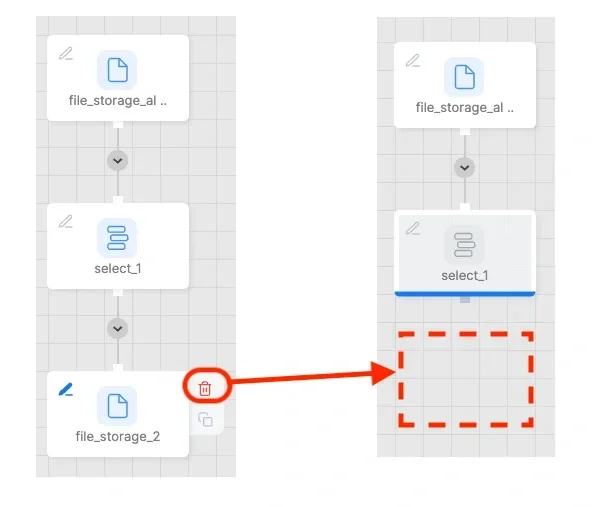

To delete a component - hover on the component until the red delete icon appears on the component, then click the red delete icon.
-

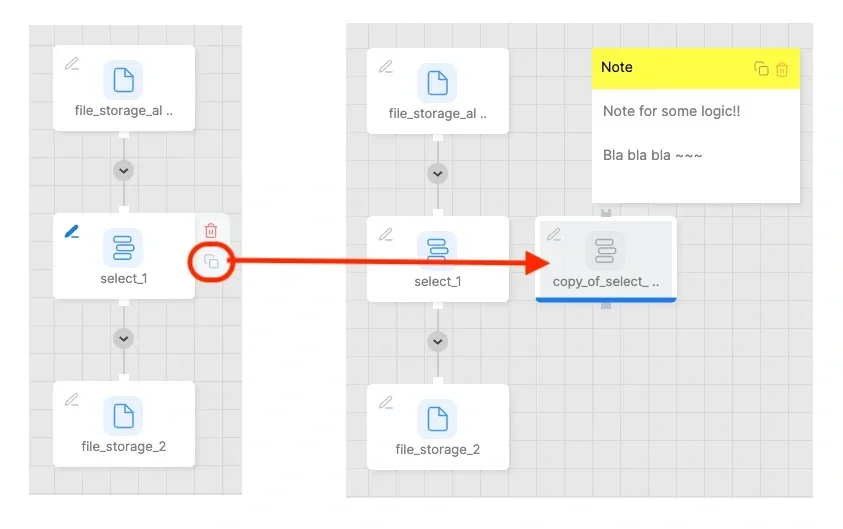

To duplicate a component - hover on the component until the black duplicate icon appears on the component, then click the black duplicate icon.
- To cut the dataflow between components - click the disconnect icon on the hover on the dotted line near a component, then click disconnect.
- To connect a dataflow between two components - drag the blue connector on the first connector and drop it on the the target connector.

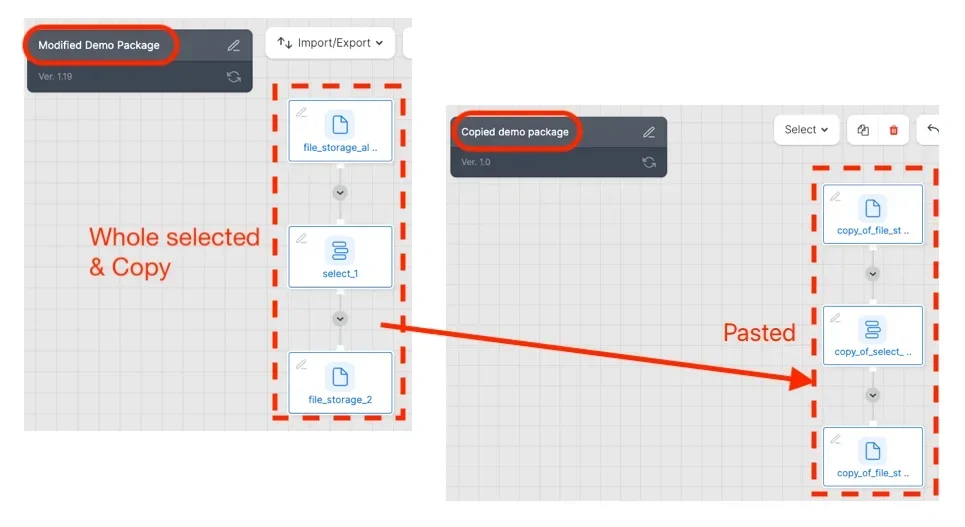

To copy components to the same or a different package
Select the component(s) to copy using any of the following methods:
- Click on an empty space on the canvas, and drag to select the required component(s).
- Select all the components in the package by clicking select and then clicking All (to unselect components, click None).
- Select only components that are connected to each other by clicking select and then clicking Connected.
To modify a component’s name:

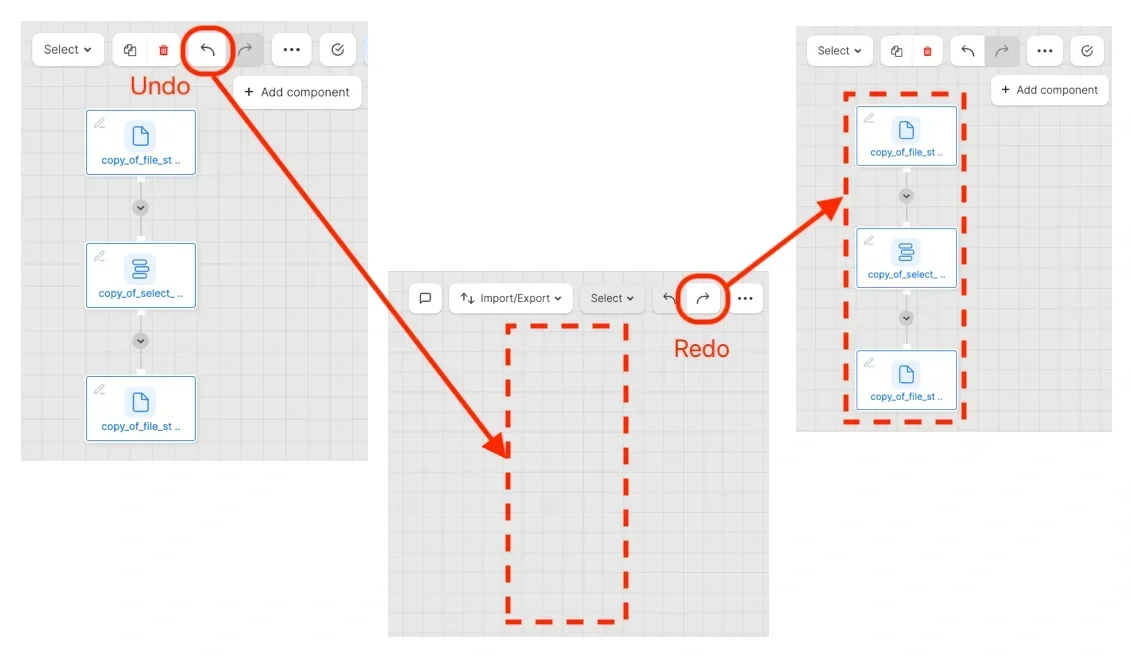

To undo / redo your last changes to a package
To use the expression editor in a component field:
